Comparison of Clustering Algorithms¶
Comparison of two clustering Algorithms
- Hierarchical Clustering
- K-Means Clustering
we will compare these two clustering methods in three areas:
Efficiency - Which method computes clusterings more efficiently?
Automation - Which method requires less human supervision to generate reasonable clusterings?
Quality - Which method generates clusterings with less error?
We will apply our clustering methods to several sets of 2D data that include information about lifetime cancer risk from air toxics. The raw version of this data is available from this website.
Each entry in the data set corresponds to a county in the USA (identified by a unique 5 digit string called a FIPS county code) and includes information on the total population of the county and its per-capita lifetime cancer risk due to air toxics.
To visualizing this data, we have processed this county-level data to include the (x,y) position of each county when overlaid on this map of the USA.
The Cluster class¶
"""
Cluster class for Module 3
"""
import math
class Cluster:
"""
Class for creating and merging clusters of counties
"""
def __init__(self, fips_codes, horiz_pos, vert_pos, population, risk):
"""
Create a cluster based the models a set of counties' data
"""
self._fips_codes = fips_codes
self._horiz_center = horiz_pos
self._vert_center = vert_pos
self._total_population = population
self._averaged_risk = risk
def __repr__(self):
"""
String representation assuming the module is "alg_cluster".
"""
rep = "alg_cluster.Cluster("
rep += str(self._fips_codes) + ", "
rep += str(self._horiz_center) + ", "
rep += str(self._vert_center) + ", "
rep += str(self._total_population) + ", "
rep += str(self._averaged_risk) + ")"
return rep
def fips_codes(self):
"""
Get the cluster's set of FIPS codes
"""
return self._fips_codes
def horiz_center(self):
"""
Get the averged horizontal center of cluster
"""
return self._horiz_center
def vert_center(self):
"""
Get the averaged vertical center of the cluster
"""
return self._vert_center
def total_population(self):
"""
Get the total population for the cluster
"""
return self._total_population
def averaged_risk(self):
"""
Get the averaged risk for the cluster
"""
return self._averaged_risk
def copy(self):
"""
Return a copy of a cluster
"""
copy_cluster = Cluster(set(self._fips_codes), self._horiz_center, self._vert_center,
self._total_population, self._averaged_risk)
return copy_cluster
def distance(self, other_cluster):
"""
Compute the Euclidean distance between two clusters
"""
vert_dist = self._vert_center - other_cluster.vert_center()
horiz_dist = self._horiz_center - other_cluster.horiz_center()
return math.sqrt(vert_dist ** 2 + horiz_dist ** 2)
def merge_clusters(self, other_cluster):
"""
Merge one cluster into another
The merge uses the relatively populations of each
cluster in computing a new center and risk
Note that this method mutates self
"""
if len(other_cluster.fips_codes()) == 0:
return self
else:
self._fips_codes.update(set(other_cluster.fips_codes()))
# compute weights for averaging
self_weight = float(self._total_population)
other_weight = float(other_cluster.total_population())
self._total_population = self._total_population + other_cluster.total_population()
self_weight /= self._total_population
other_weight /= self._total_population
# update center and risk using weights
self._vert_center = self_weight * self._vert_center + other_weight * other_cluster.vert_center()
self._horiz_center = self_weight * self._horiz_center + other_weight * other_cluster.horiz_center()
self._averaged_risk = self_weight * self._averaged_risk + other_weight * other_cluster.averaged_risk()
return self
def cluster_error(self, data_table):
"""
Input: data_table is the original table of cancer data used in creating the cluster.
Output: The error as the sum of the square of the distance from each county
in the cluster to the cluster center (weighted by its population)
"""
# Build hash table to accelerate error computation
fips_to_line = {}
for line_idx in range(len(data_table)):
line = data_table[line_idx]
fips_to_line[line[0]] = line_idx
# compute error as weighted squared distance from counties to cluster center
total_error = 0
counties = self.fips_codes()
for county in counties:
line = data_table[fips_to_line[county]]
singleton_cluster = Cluster(set([line[0]]), line[1], line[2], line[3], line[4])
singleton_distance = self.distance(singleton_cluster)
total_error += (singleton_distance ** 2) * singleton_cluster.total_population()
return total_error
Helper Methods for clustering methods¶
"""
slow_closest_pair(cluster_list)
fast_closest_pair(cluster_list)
closest_pair_strip(cluster_list, horiz_center, half_width)
where cluster_list is a 2D list of clusters in the plane
"""
######################################################
# Code for closest pairs of clusters
def pair_distance(cluster_list, idx1, idx2):
"""
Helper function that computes Euclidean distance between two clusters in a list
Input: cluster_list is list of clusters, idx1 and idx2 are integer indices for two clusters
Output: tuple (dist, idx1, idx2) where dist is distance between
cluster_list[idx1] and cluster_list[idx2]
"""
return (cluster_list[idx1].distance(cluster_list[idx2]), min(idx1, idx2), max(idx1, idx2))
def slow_closest_pair(cluster_list):
"""
Compute the distance between the closest pair of clusters in a list (slow)
Input: cluster_list is the list of clusters
Output: tuple of the form (dist, idx1, idx2) where the centers of the clusters
cluster_list[idx1] and cluster_list[idx2] have minimum distance dist.
"""
ans = (float("inf"),-1,-1)
for ind_i,point_i in enumerate(cluster_list):
for ind_j,point_j in enumerate(cluster_list):
if ind_i != ind_j :
distance = point_i.distance(point_j)
if distance < ans[0]:
ans = (distance,ind_i,ind_j)
return ans
def fast_closest_pair(cluster_list):
"""
Compute the distance between the closest pair of clusters in a list (fast)
Input: cluster_list is list of clusters SORTED such that horizontal positions of their
centers are in ascending order
Output: tuple of the form (dist, idx1, idx2) where the centers of the clusters
cluster_list[idx1] and cluster_list[idx2] have minimum distance dist.
"""
num = len(cluster_list)
if num <= 3:
ans = slow_closest_pair(cluster_list)
else:
middle = num // 2
p_left = cluster_list[:middle]
p_right = cluster_list[middle:]
d_left = fast_closest_pair(p_left)
d_right = fast_closest_pair(p_right)
ans = d_left
if d_left[0] > d_right[0]:
ans = (d_right[0],d_right[1]+middle,d_right[2]+middle)
mid = (cluster_list[middle-1].horiz_center() + cluster_list[middle].horiz_center()) / 2
ans_2 = closest_pair_strip(cluster_list,mid,ans[0])
if ans_2[0] < ans[0]:
ans = ans_2
return ans
def closest_pair_strip(cluster_list, horiz_center, half_width):
"""
Helper function to compute the closest pair of clusters in a vertical strip
Input: cluster_list is a list of clusters produced by fast_closest_pair
horiz_center is the horizontal position of the strip's vertical center line
half_width is the half the width of the strip (i.e; the maximum horizontal distance
that a cluster can lie from the center line)
Output: tuple of the form (dist, idx1, idx2) where the centers of the clusters
cluster_list[idx1] and cluster_list[idx2] lie in the strip and have minimum distance dist.
"""
#cluster_list.sort(key = lambda cluster: cluster.vert_center())
index_set = list()
for ind, point in enumerate(cluster_list):
if abs(point.horiz_center()-horiz_center) < half_width :
index_set.append(ind)
index_set = sorted(index_set, key = lambda x: cluster_list[x].vert_center(), reverse = True)
k_items = len(index_set)
ans = (float("inf"),-1,-1)
for u_ind in range(0,k_items-1):
for v_ind in range(u_ind+1,min(u_ind+3,k_items-1)+1):
distance = cluster_list[index_set[u_ind]].distance(cluster_list[index_set[v_ind]])
if ans[0] > distance :
ans = (distance,min(index_set[u_ind],index_set[v_ind]),max(index_set[u_ind],index_set[v_ind]))
return ans
Clustering Methods¶
"""
hierarchical_clustering(cluster_list, num_clusters)
kmeans_clustering(cluster_list, num_clusters, num_iterations)
"""
######################################################################
# Code for hierarchical clustering
def hierarchical_clustering(cluster_list, num_clusters):
"""
Compute a hierarchical clustering of a set of clusters
Note: the function may mutate cluster_list
Input: List of clusters, integer number of clusters
Output: List of clusters whose length is num_clusters
"""
while len(cluster_list) > num_clusters :
# sort list very importtant
cluster_list = sorted(cluster_list, key = lambda cluster:cluster.horiz_center())
pair = fast_closest_pair((cluster_list))
cluster_list[pair[1]].merge_clusters(cluster_list[pair[2]])
cluster_list.pop(pair[2])
return cluster_list
######################################################################
# Code for k-means clustering
def kmeans_clustering(cluster_list, num_clusters, num_iterations):
"""
Compute the k-means clustering of a set of clusters
Note: the function may not mutate cluster_list
Input: List of clusters, integers number of clusters and number of iterations
Output: List of clusters whose length is num_clusters
"""
# position initial clusters at the location of clusters with largest populations
cluster_list_sorted = sorted(cluster_list, key = lambda cluster:cluster.total_population(), reverse = True)
k_cluster_center = []
for idx in range(0,num_clusters):
k_cluster_center.append((cluster_list_sorted[idx].horiz_center(),cluster_list_sorted[idx].vert_center()))
for dummy_iter in range(1,num_iterations+1):
#Initialize k empty sets C1, . . . , Ck;
new_cluster = [alg_cluster.Cluster(set([]),0,0,1,0) for dummy_idx in range(0,num_clusters)]
for index in range(0,len(cluster_list)):
distance_list = [math.sqrt((k_cluster_center[ind_f][0] - cluster_list[index].horiz_center()) ** 2 + (k_cluster_center[ind_f][1] - cluster_list[index].vert_center()) **2 ) for ind_f in range(0,num_clusters)]
index_min = distance_list.index(min(distance_list))
new_cluster[index_min].merge_clusters(cluster_list[index])
for index in range(0, num_clusters):
k_cluster_center[index] = (new_cluster[index].horiz_center(),new_cluster[index].vert_center())
return new_cluster
## Load data to program
def load_data_table(data_url):
"""
Import a table of county-based cancer risk data
from a csv format file
"""
data_file = urllib2.urlopen(data_url)
data = data_file.read()
data_lines = data.split('\n')
print("Loaded", len(data_lines), "data points")
data_tokens = [line.split(',') for line in data_lines]
return [[tokens[0], float(tokens[1]), float(tokens[2]), int(tokens[3]), float(tokens[4])]
for tokens in data_tokens]
Efficiency Comparison¶
Q1. Comparision between running time of slow_closest_pair and fast_closest_pair.
Complexity of fast_closest_pair : O(n log2 n)
Complexity of slow_closest_pair : O(n2)
Q2. An image of the 15 clusters generated by applying hierarchical clustering to the 3108 county cancer risk data set.

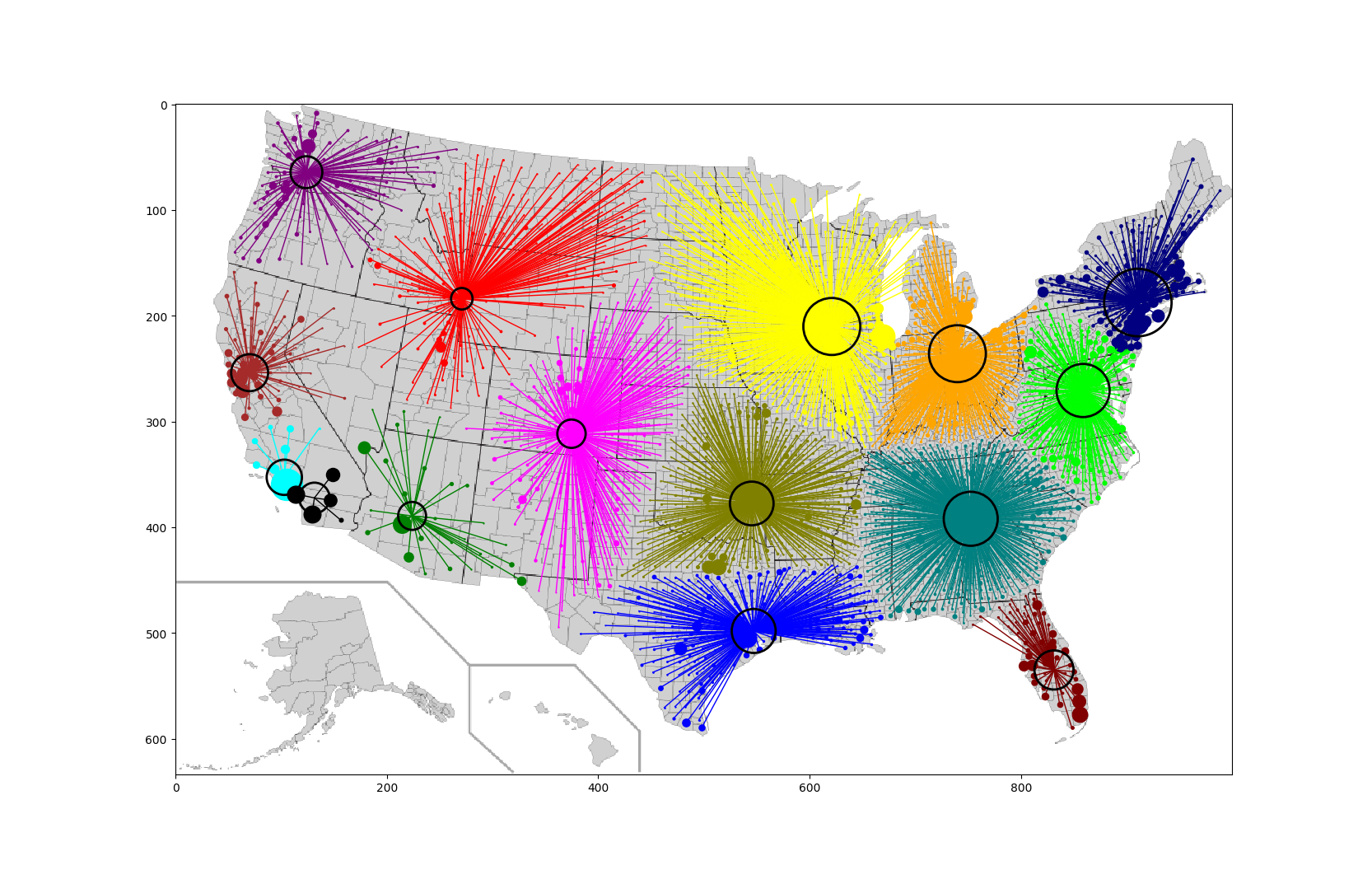

Q3.An image of the 15 clusters generated by applying 5 iterations of k-means clustering to the 3108 county cancer risk data set.
Q4. Which clustering method is faster when the number of output clusters is either a small fixed number or a small fraction of the number of input clusters?
Ans : If there are n input clusters and k output clusters, hierarchical clustering makes (n−k) calls to fast_closest_pair. If k is fixed or a small fraction of n, each call to fast_closest_pair is O(nlog2n) and, therefore, the running time for hierarchical clustering using fast_closest_pair is O(n2log2n).
For k-means, the running time is either O(n) or O(n2) depending on whether the size of output cluster is fixed or varies as a function n. Even in the this second case, k being a small fraction of n will reduce the running time in practice.
Automation Comparison¶

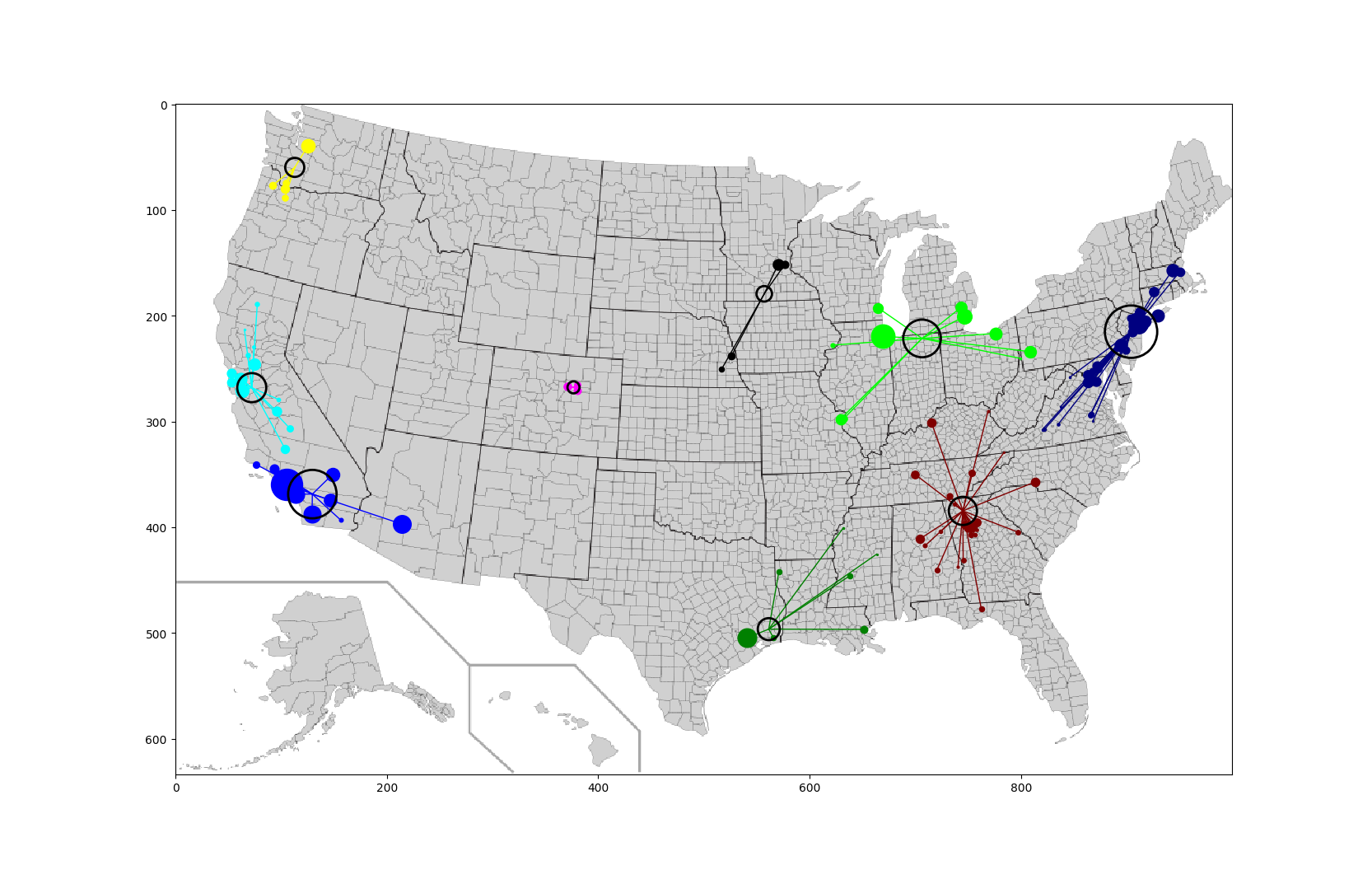

Q5. An image of the 9 clusters generated by applying hierarchical clustering to the 111 county cancer risk data set.

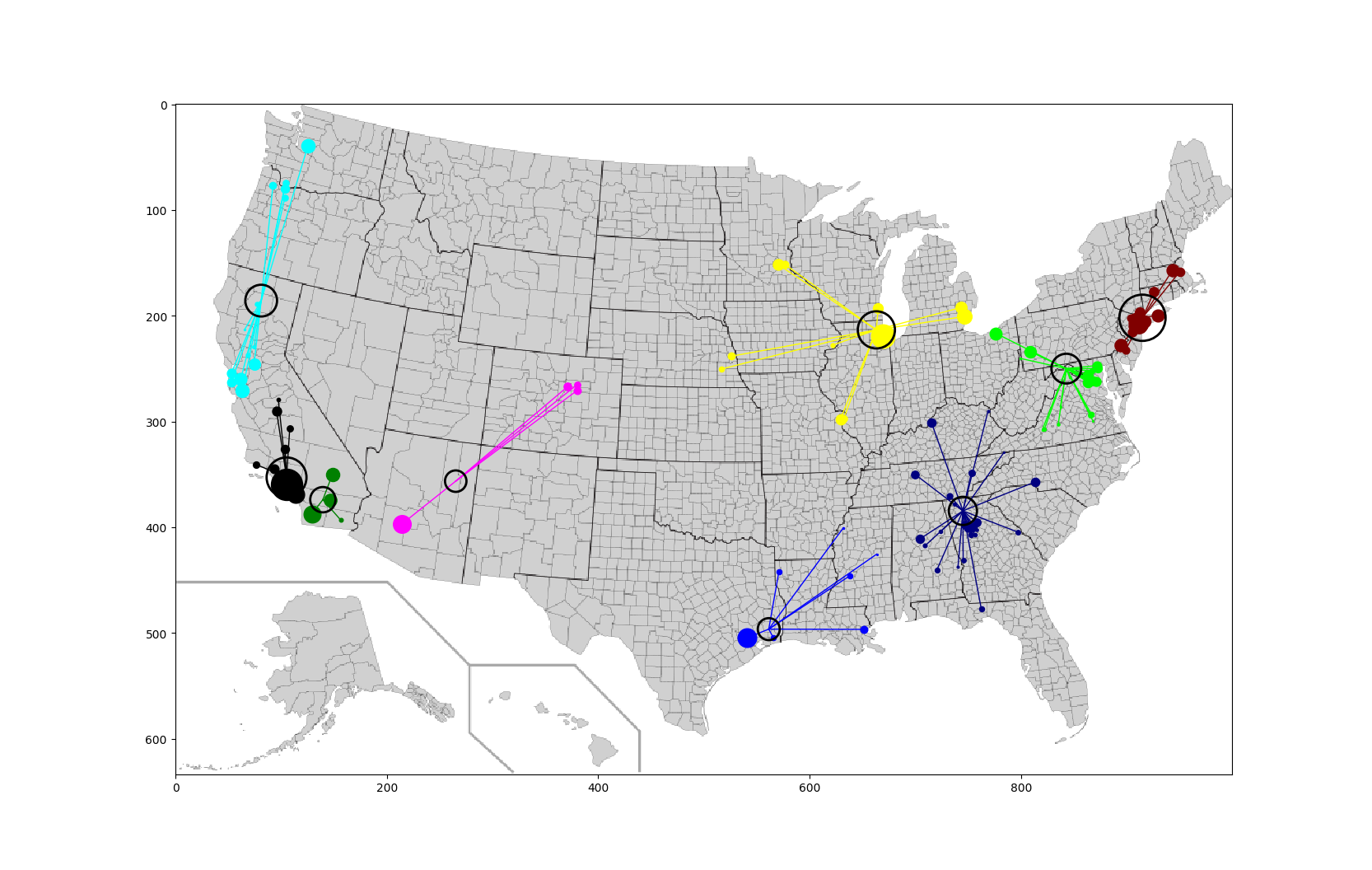

Q5. An image of the 9 clusters generated by applying k-means clustering to the 111 county cancer risk data set.
Q7. Write a function compute_distortion(cluster_list) that takes a list of clusters and uses cluster_error to compute its distortion.
#data_table = load_data_table(DATA_XXXXX_URL)
def error_count(cluster_list):
error_sum = 0.0
for cluster in cluster_list:
error_sum += cluster.cluster_error(data_table) ## Cluster class error function
return error_sum
- The distortion(or error) for 9 clusters by hierarchical clustering on 111 county data set is = 1.7516 * 10^11 OR 175163886916.0
- The distortion for 9 clusters by K-means clustering on 111 county data set is = 2.712 * 10^11 OR 271254226925.0
Q8. Describe the difference between the shapes of the clusters produced by these two methods on the west coast of the USA. What caused one method to produce a clustering with a much higher distortion? To help you answer this question, you should consider how k-means clustering generates its initial clustering in this case.
Ans : Each method generates 3 clusters on the west coast of the USA. Hierarchical clustering generates one cluster in Washington state, one in northern California and one in southern California. K-means clustering generates one cluster that includes Washington state and parts of northern California, one cluster that includes the Los Angeles area, and one cluster that includes San Diego. The k-means clustering has substantially higher distortion due in part to the fact that southern California is split into two clusters while northern California is clustered with Washington state.
This difference in cluster shape is due to the fact that the initial clustering used in k-means clustering includes the 3 counties in southern California with high population and no counties in northern California or Washington state. Due to a poor choice of the initial clustering based on large population counties, k-means clustering produces a clustering with relatively high distortion.
Q9. Which method (hierarchical clustering or k-means clustering) requires less human supervision to produce clustering with relatively low distortion?
Ans : Hierarchical clustering requires less human supervision than k-means clustering to produce clustering of relatively low distortion as it requires no human interaction beyond the choice of the number of output clusters. On the other hand, k-means clustering requires a good strategy for choosing the initial cluster centers.
Quality Comparison¶

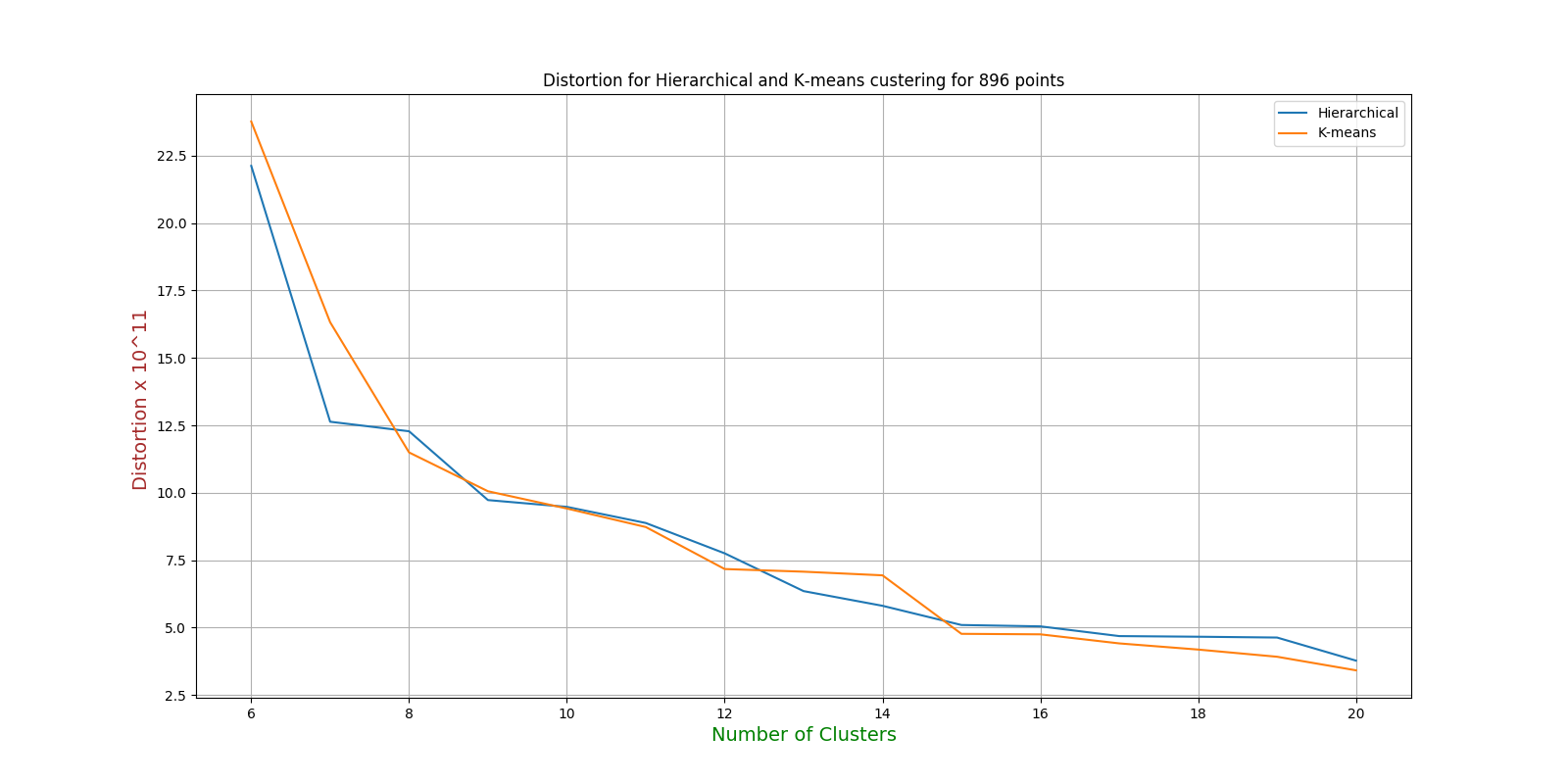

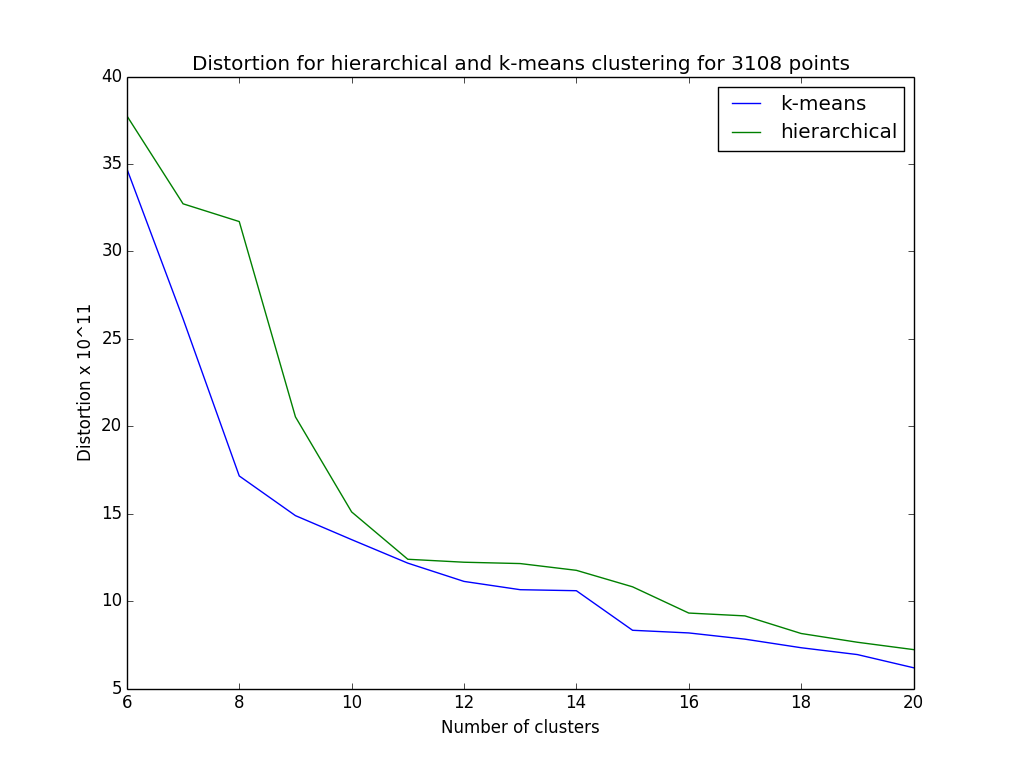

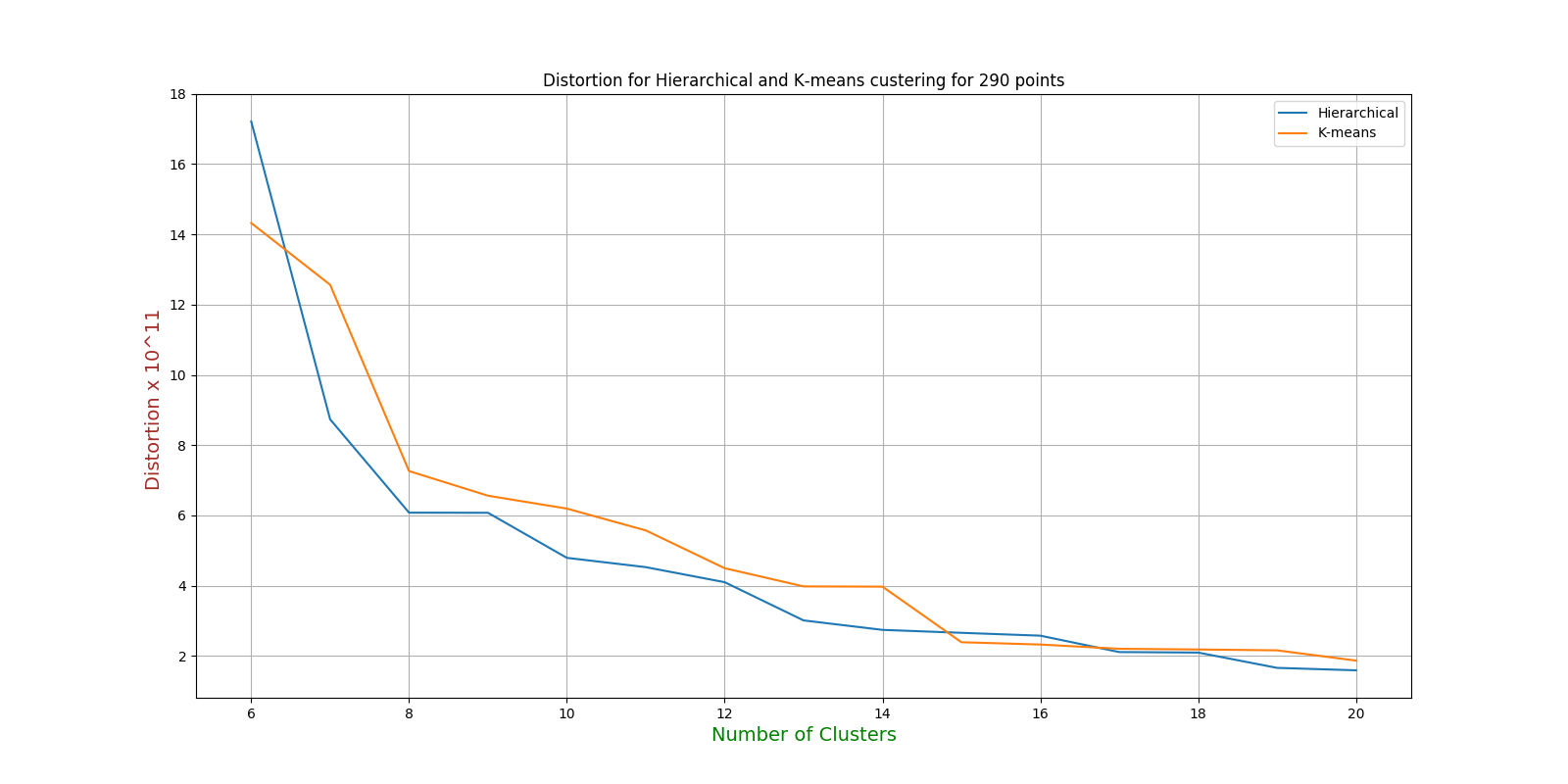

Q10. Comparison between Distortion of hierarchical and k-means methods for 111 data set.
Q11. Comparison between Distortion of hierarchical and k-means methods for 290 data set.
Q12. Comparison between Distortion of hierarchical and k-means methods for 896 data set.
Q13. Analysis of Distortion by Hierarchical and k-means for above 3 set.
Ans : For the 111 county data set, hierarchical clustering consistently produces clusterings with less distortion.
For the other two data sets, neither clustering method consistently dominates.
For our knowledge :
Interestingly, k-means clustering produces lower distortion clusterings for the 3108 county data set.
Link to a plot of distortion for the clusterings produced by both methods.
Q14. Which clustering method would you prefer when analyzing these data sets?
On these data sets, neither method dominates in all three areas: efficiency, automation, and quality. In terms of efficiency, k-means clustering is preferable to hierarchical clustering as long as the desired number of output clusters is known beforehand. However, in terms of automation, k-means clustering suffers from the drawback that a reliable method for determining the initial cluster centers needs to be available. Finally, in terms of quality, neither method produces clusterings with consistently lower distortion on larger data sets.
For More details please visit to Abhinesh Garhwal @Github
